Dimension
260(L)x292(H)x260(D)
Résolution (XY-Axis)0.005mm / (Z-Axis)0.00125mm
Aire de gravure Maxi 124(X)x100(Y)
Spindle Revolution 12,000 tr/min
Outil Diameter 3mm
Alimentation 80-240v
Poids 21kg

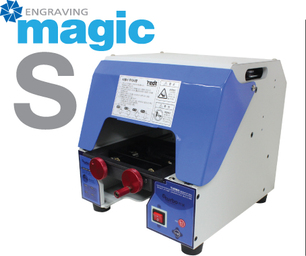

MAGIC-S, stamp engraving machine, is a most cost-effective solution for high-quality stamp making.
It engraves stamp fast with a powerful 12,000RPM DC motor ensuring fast on-the-spot service.
It requires just a small space to install, so it's also good for small shop. Its automatic cutter length sensor and automatic stamp size sensing probe dramatically simplifies the machine use making it possible for anybody to use the machine with just very basic instructions.

Plate Thickness
Measurement Sensor

Procedure

                       1. Design                                     2. Fix                                     3. Engrave                                 4. Completion

Example


Vidéo
